Acknowledgements

EduConnect was developed based on the project codebase of Address Book 3 (AB3). This project builds upon the foundational architecture and core functionalities established in AB3, while introducing new features and customizations tailored for managing student and teacher data.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

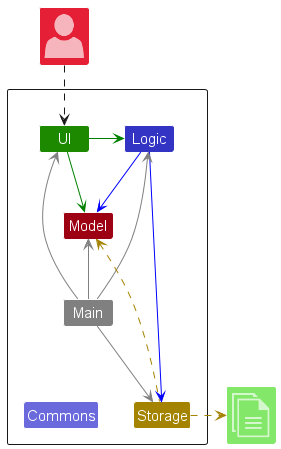

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

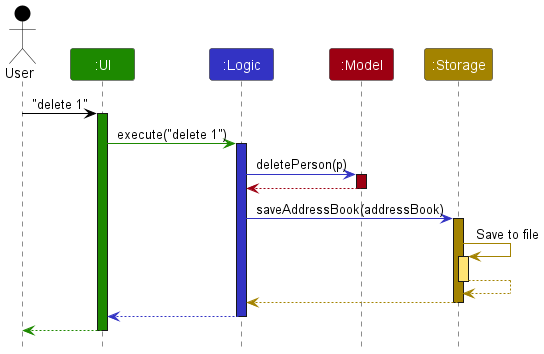

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

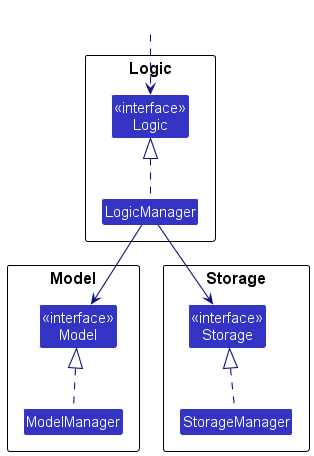

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

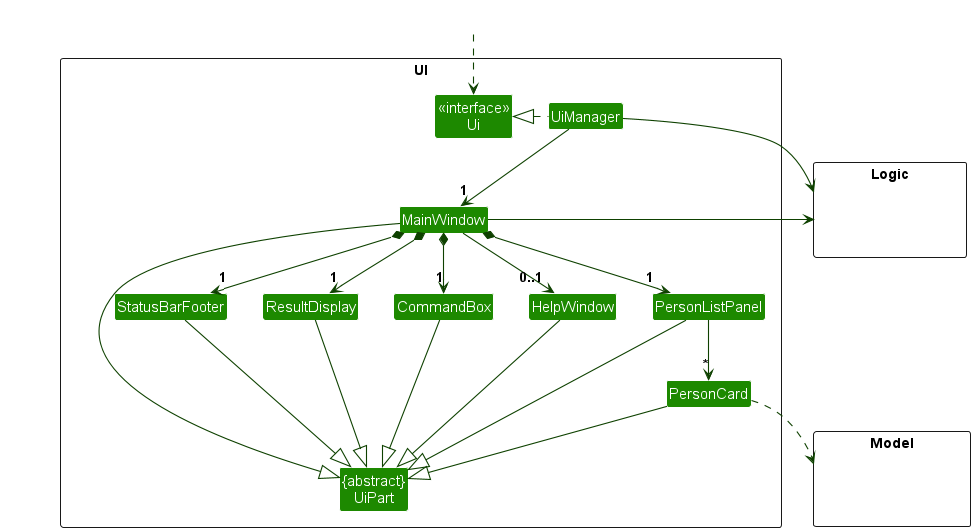

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml.

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

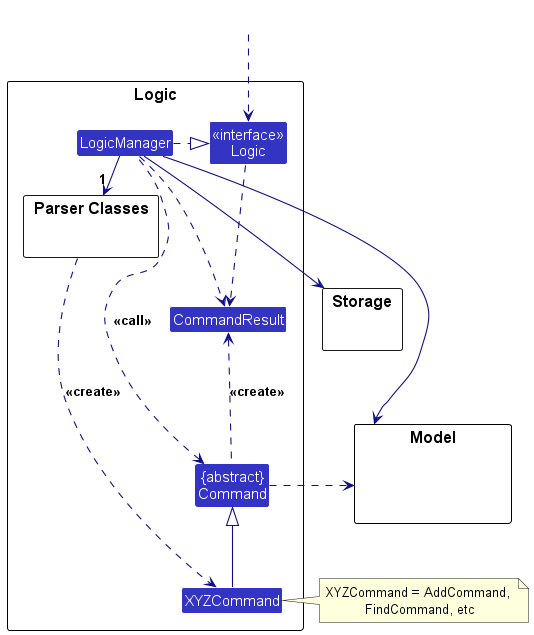

Here’s a (partial) class diagram of the Logic component:

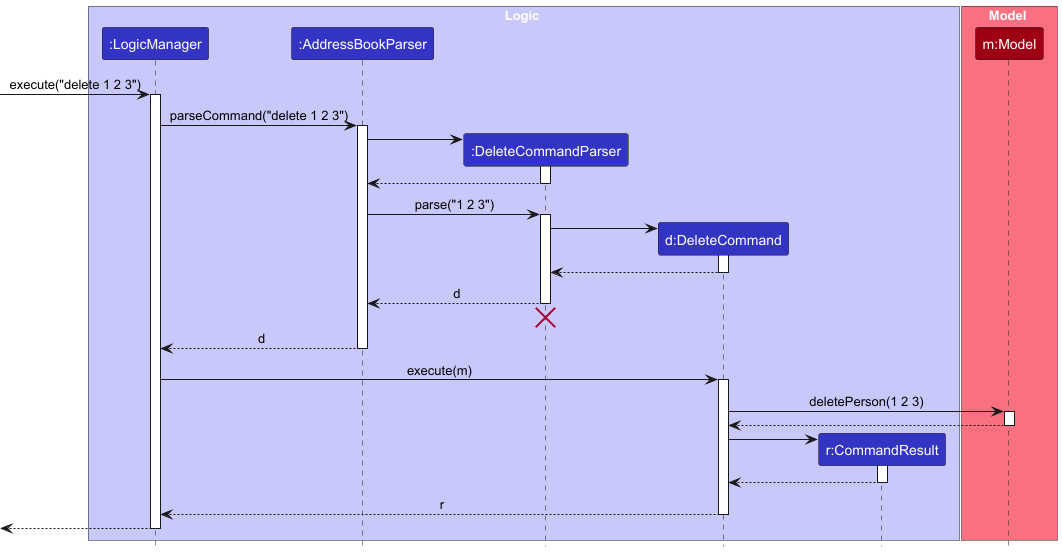

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

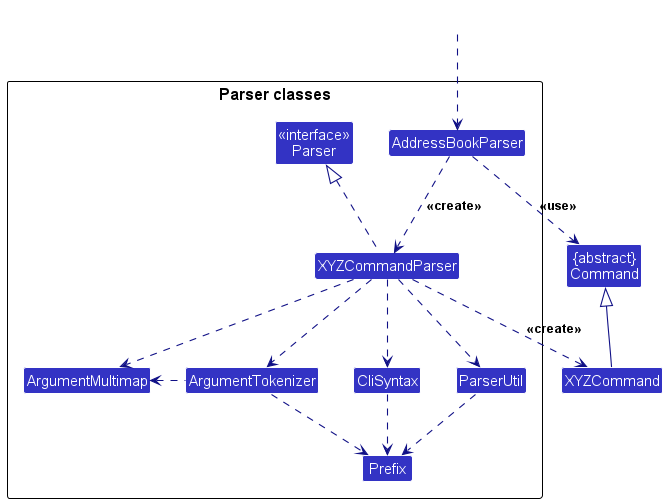

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

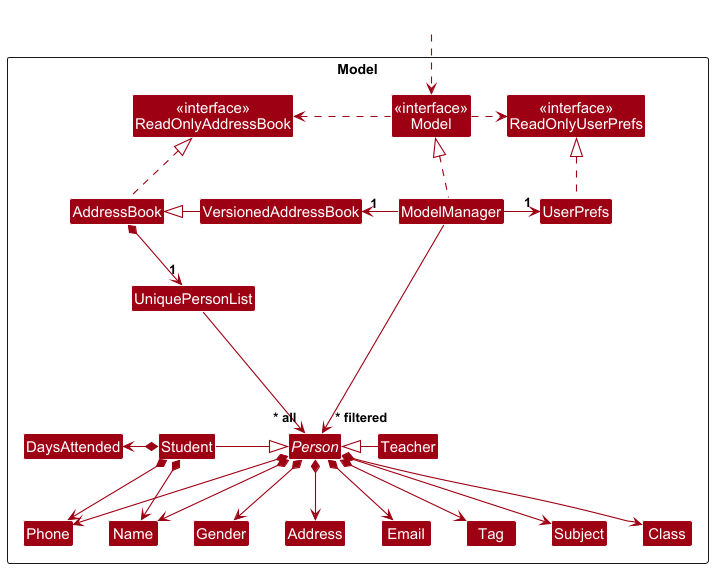

Model component

API : Model.java

The Model component,

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.

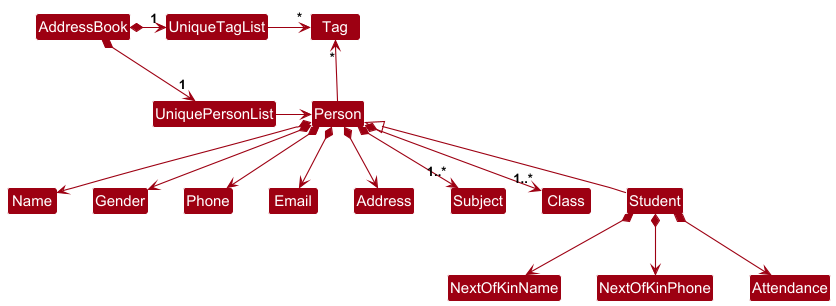

• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components).

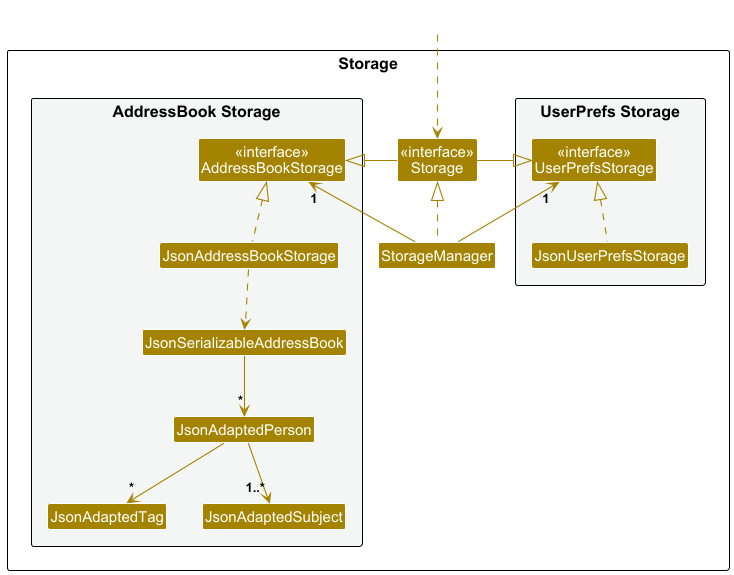

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model).

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Command History

Implementation

The command history functionality is implemented in three main components:

1. CommandHistory: This class maintains a list of past commands and currentIndex to track the current position within the list. It includes methods for adding new commands and retrieving the previous or next command:

• add(command) — Adds a command to the history and resets the pointer to the most recent position.
• getPreviousCommand() — Moves the pointer to the previous command and returns it.
• getNextCommand() — Moves the pointer to the next command and returns it.

1. LogicManager: The LogicManager component integrates the CommandHistory to store each command upon execution. It provides access to the history for other components like the UI.

2. CommandBox UI Component: This component captures key events when the user presses the up or down arrow keys. Based on these key events, it retrieves commands from CommandHistory via LogicManager and displays them in the command input field.

Sequence Diagram

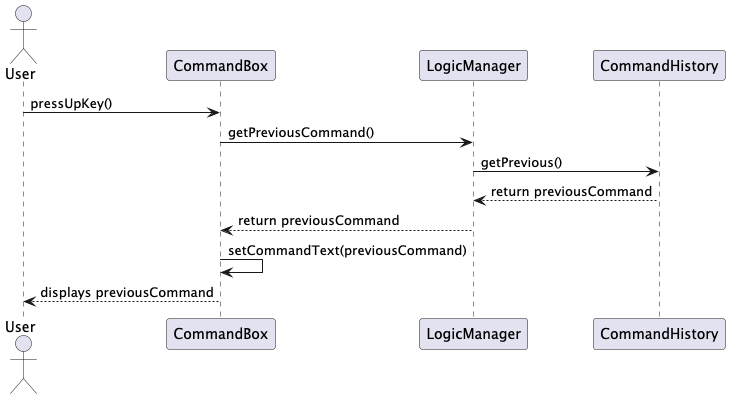

The following sequence diagram illustrates the flow when a user presses the up arrow key to access the previous command in history:

1. The user presses the up arrow key.
2. CommandBox calls LogicManager#getPreviousCommand().
3. LogicManager delegates this request to CommandHistory#getPrevious().
4. CommandHistory retrieves the previous command and returns it to LogicManager.
5. LogicManager then passes the command back to CommandBox.
6. CommandBox displays the previous command in the input field.

This streamlined structure keeps the history management isolated within CommandHistory, simplifying logic in other components. The result is an intuitive user experience that enhances the command-line interface.

Undo/redo feature

Implementation

The undo/redo mechanism is facilitated by VersionedAddressBook. It extends AddressBook with an undo/redo history, stored internally as an addressBookStateList and currentStatePointer. It also stores a predicateStateList for the Predicates used for each state. Additionally, it implements the following operations:

• VersionedAddressBook#commit() — Saves the current address book state in its history.
• VersionedAddressBook#undo() — Restores the previous address book state from its history.
• VersionedAddressBook#redo() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitAddressBook(), Model#undoAddressBook() and Model#redoAddressBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

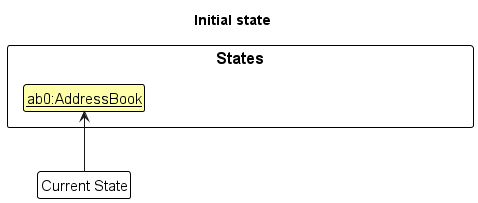

Step 1. The user launches the application for the first time. The VersionedAddressBook will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

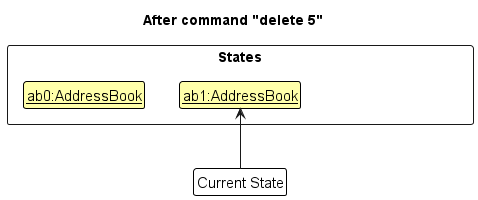

Step 2. The user executes delete 5 command to delete the 5th person in the address book. The executeCommand method in the Command class calls Model#commitAddressBook(), causing the modified state of the address book after the delete 5 command executes to be saved in the addressBookStateList, and the currentStatePointer is shifted to the newly inserted address book state.

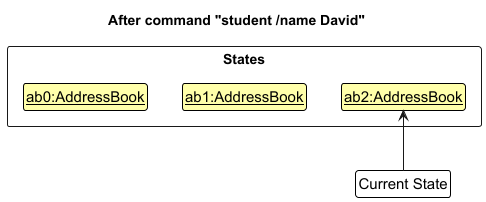

Step 3. The user executes student /name David …​ to add a new person. The executeCommand command also calls Model#commitAddressBook(), causing another modified address book state to be saved into the addressBookStateList.

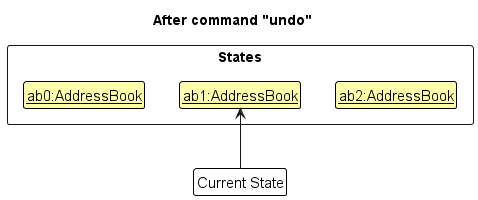

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoAddressBook(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

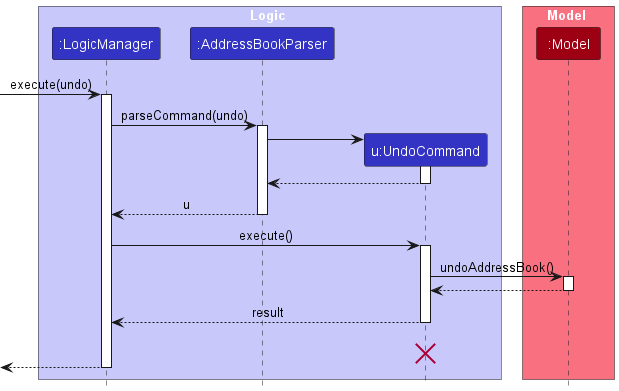

The following sequence diagram shows how an undo operation goes through the Logic component:

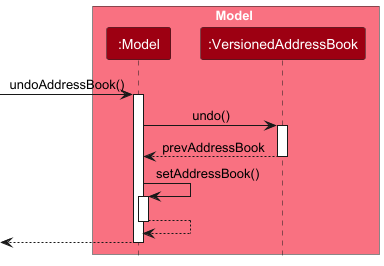

Similarly, how an undo operation goes through the Model component is shown below:

The redo command does the opposite — it calls Model#redoAddressBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

Step 5. The user then decides to execute the command help. Commands that do not modify the address book, such as help, will usually not call Model#commitAddressBook(), Model#undoAddressBook() or Model#redoAddressBook(). Thus, the addressBookStateList remains unchanged.

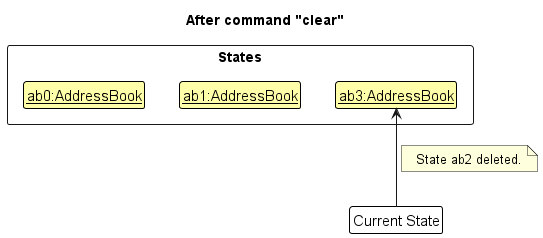

Step 6. The user executes clear, which calls Model#commitAddressBook(). Since the currentStatePointer is not pointing at the end of the addressBookStateList, all address book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the student /name David …​ command. This is the behavior that most modern desktop applications follow.

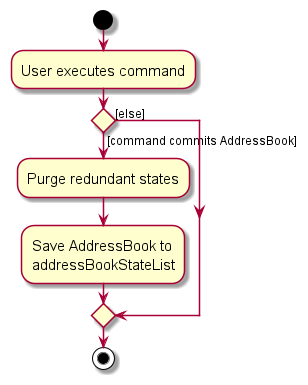

The following activity diagram summarizes what happens when a user executes a new command:

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Planned Enhancements

Team Size: 5

1. Update student and teacher success message: The current success message for adding a student or teacher without any tags ends with ; Tags:, i.e. it attempts to display the tags but since none were added, it ends off abruptly.

   We plan to make the success message only mention the Tags if there are tags to be listed, e.g. either ... Next of Kin: Bob Doe; Emergency Contact: 87654321; (i.e. no tags) or ... Next of Kin: Bob Doe; Emergency Contact: 87654321; Tags: [friend] (i.e. at least one tag to be displayed).

2. Enhance mark command’s implementation: The current implementation of mark can only mark the attendance of all students together. This prevents users from easily marking the attendance of individual students. The current workaround is to either mark and unmark all other students or to delete and add the student back into EduConnect with the incremented attendance field.

   We plan to introduce optional index parameters for the mark command, allowing users to specify which indexes to specifically mark the attendance of. This implementation will be similar to the unmark command. E.g. mark will still mark the attendance of all students but mark 1 2 will only mark the attendance of the 1st and 2nd index persons (assuming they are students).

3. Use shorter command aliases: Currently, EduConnect requires users to use longer parameters such as /name when entering commands.

   We plan to introduce shorter command aliases, such as /n for /name, to make input faster and more convenient for users.

4. Prevent edit command from accepting /nok, /attendance and /emergency prefix for teacher: The current implementation of the edit command allows for the use of /nok, /attendance and /emergency prefixes for teacher contacts. This is not necessary as these fields are not applicable to teachers.

   We plan to prevent the use of these prefixes for teacher contacts, ensuring that only the relevant fields can be edited for teachers.

5. Relax restrictions on phone number to allow international phone numbers: The current implementation of the add command restricts phone numbers to be 8 digits long. This is not suitable for international phone numbers, which can be longer than 8 digits.

   We plan to relax the restrictions on phone numbers to allow for international phone numbers, which can be longer than 8 digits. This will allow for a wider range of phone numbers to be added to EduConnect.

6. Make gender parameter case-insensitive: The current parameter of gender requires the user to input strictly male or female. This is not user-friendly as users may input Male or Female instead.

   We plan to make the gender parameter case-insensitive and accept both male and female and also m and f in any case as valid inputs to allow for a more user-friendly experience.

7. Ability to edit attendance for students: The current edit command does not support editing the attendance parameter.

   We plan to enhance the edit command to include the ability to directly modify the student’s attendance field to a specified value, provided it adheres to the required constraints of the attendance parameter. The command format will be edit INDEX [/attendance ATTENDANCE].

8. Update find command to support partial matching: The current find command only supports exact matches for search parameters, which limits its flexibility.

   We plan to enhance the find command to allow partial matches, enabling users to search for entries using incomplete information. For instance, entering find /name han would return results such as “Hans Gruber” and “Johanna Smith.”.

9. Prevent duplicate subjects to be added: The current implementation for adding a contact allows for duplicate subjects to be added for a contact.

   We plan to prevent the addition of duplicate contacts by filtering out subjects that already exist in the contact’s subject list.

10. Allow certain special characters in names: The current implementation for adding a contact prevents the use of any special characters in names.

    We plan to allow the incorporation of characters such as ‘/’ and ‘-‘ in names to accommodate a wider range of names.

---

Appendix: Effort

The main difficulty faced by the team was understanding the existing codebase and adapting it to meet new requirements. The team had to dedicate a significant amount of time to comprehending the codebase and the interactions between its various components, which was a considerable challenge due to their lack of prior experience with it. Fortunately, the existing AB3 developer guide provided a solid starting point for tackling the new requirements. By leveraging the guide, the team was able to implement new features, such as abstracting Person into Student and Teacher.

The learning curve associated with JavaFX and implementing the GUI presented another significant challenge for the team. With only basic knowledge gained from their iP projects, the team had to learn JavaFX from scratch, dedicating a substantial amount of time to mastering it and implementing the GUI, which in turn slowed down the development process. Additionally, making significant changes to the JSON storage file posed another hurdle. The team needed to understand how the JSON storage file functioned and how to modify it without disrupting existing functionality. This was particularly challenging due to the team’s lack of prior experience with JSON storage files, requiring them to learn how to make modifications without causing issues in the current system.

---

Appendix: Requirements

Product scope

Target user profile: School teachers looking to manage the details of both students and other teachers.

• needs to keep track of many students at a time
• can type fast
• prefers to type in a command line interface
• uses a small set of commands
• makes frequent typos but hates to backtrack with backspace
• likes to have an autocomplete suggestion

Value proposition: EduConnect will provide a faster and more convenient way to manage details of students and teachers than other apps.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority​	As a …​	I want to …​	So that I can…​
* * *	new user	see usage instructions	refer to instructions when I forget how to use the App
* * *	teacher	add a new student and their details	keep track of student information efficiently and manage their data in one place
* * *	teacher	remove/delete a student from the app	remove entries that I no longer need
* * *	teacher	add a new teacher and their details	find information on other teachers if need be
* * *	teacher	remove/delete a teacher from the app	remove entries that I no longer need
* * *	teacher	edit or update information of a student	keep the data stored accurate and up to date
* *	teacher	clear all student/class data from the previous semester/year	reset the app for the new semester/year
* *	teacher	search for students by some partial information	quickly find a list of students without recalling specific details
* *	teacher	tag and filter students based on specific attributes	access relevant groups without manually searching every time
*	teacher new to EduConnect	see a sample version of how the app will look with sample data	better visualise the workflow or how the app will work or look
*	teacher who makes typos	have flexibility in typos for the commands	continue writing commands without needing to rewrite or backspace
*	teacher familiar with CLI	use shortcuts or linux-like commands	enter commands faster and more familiar to me
*	teacher	export student list and contact information to various formats	share and archive data easily for administrative purposes
*	teacher	switch between different classes using keybinds	navigate between different groups of students efficiently
*	teacher	have an undo/redo command for recent actions	quickly correct mistakes or revert changes
*	teacher	create custom command aliases for frequently used commands	streamline my workflow and reduce the number of keystrokes needed
*	teacher	have built-in calendar integration that links student info with important dates (e.g. parent meetings, exams)	easily access all relevant student data when preparing for key events
*	teacher	quickly generate printable class rosters with selected details (e.g. names, contact info, emergency contacts)	have a physical copy for field trips or offline use
*	teacher	have a dark mode or customizable themes for the interface	reduce eye strain while managing student data at night
*	teacher	use natural language input for commands (e.g. “add student John Doe to class 5a”)	enter commands more intuitively without memorising specific syntax
*	teacher	group students based on customizable criteria (e.g. performance level, participation)	easily view and manage students with similar needs
*	teacher	get the contact details of a frequently searched contact	quickly use it to contact a student
*	teacher	systematically add the contact details of twins who share similar details	have a smaller chance of having errors

Use cases

(For all use cases below, the System is EduConnect and the Actor is a Teacher (User), unless specified otherwise)

Use case: UC01 - Add a student

Preconditions

• User has the student’s details, i.e. name, gender, contact, classes, subject, email, address, attendance, next of kin and emergency contact.

MSS

1. Teacher enters the add student command.
2. EduConnect verifies the command inputs.
3. EduConnect adds the student’s contact details to the address book.

4. EduConnect displays a success message.

   Use case ends.

Extensions

• 2a. Required parameter(s) missing in command format.

  • 2a1. EduConnect displays an error message.

    Use case ends.

• 2b. Invalid/Unsupported parameter tag used.

  • 2b1. EduConnect displays an error message.

    Use case ends.

• 2c. Invalid argument for a parameter given.

  • 2c1. EduConnect displays an error message, e.g. “Names should only contain alphanumeric characters and spaces, and it should not be blank”.

    Use case ends.

• 2d. Existing contact or email given.

  • 2d1. EduConnect displays an error message, e.g. “This student already exists in the address book”.

    Use case ends.

Use case: UC02 - Add a teacher

Preconditions

• User has the teacher’s details, i.e. name, gender, contact, classes, subject, email and address.

MSS

1. Teacher enters the add teacher command.
2. EduConnect verifies the command inputs.
3. EduConnect adds the teacher’s contact details to the address book.

4. EduConnect displays a success message.

   Use case ends.

Extensions

• 2a. Required parameter(s) missing in command format.

  • 2a1. EduConnect displays an error message.

    Use case ends.

• 2b. Invalid/Unsupported parameter tag used.

  • 2b1. EduConnect displays an error message.

    Use case ends.

• 2c. Invalid argument for a parameter given.

  • 2c1. EduConnect displays an error message, e.g. “Names should only contain alphanumeric characters and spaces, and it should not be blank”.

    Use case ends.

• 2d. Existing contact or email given.

  • 2d1. EduConnect displays an error message, e.g. “This student already exists in the address book”.

    Use case ends.

Use case: UC-03 Delete a contact

Preconditions

• The address book contains at least one contact.
• User knows the index of the contact to be deleted.

MSS

1. Teacher enters the delete contact command.
2. EduConnect verifies the index validity.
3. EduConnect deletes the contact from the address book.

4. EduConnect displays a success message.

   Use case ends.

Extensions

• 2a. Invalid index provided.

  • 2a1. EduConnect displays an error message, e.g. “The person index provided is invalid: 2”.

    Use case ends.

Use case: UC-04 List contacts

MSS

1. Teacher enters the list command.

2. EduConnect displays a list of all contacts in the address book.

   Use case ends.

Use case: UC-05 Edit a contact

Preconditions

• The address book contains at least one contact.
• User knows the index of the contact to be edited.

MSS

1. Teacher enters the edit command.
2. EduConnect verifies the command inputs.
3. EduConnect edits the specified contact in the address book.

4. EduConnect displays a success message.

   Use case ends.

Extensions

• 2a. Invalid index provided.

  • 2a1. EduConnect displays an error message.

    Use case ends.

• 2b. Invalid/Unsupported parameter tag used.

  • 2b1. EduConnect displays an error message.

    Use case ends.

• 2c. Invalid new argument for a parameter given.

  • 2c1. EduConnect displays an error message, e.g. “Names should only contain alphanumeric characters and spaces, and it should not be blank”.

    Use case ends.

• 2d. Duplicate contact or email provided.

  • 2d1. EduConnect displays an error message, e.g. “This student already exists in the address book”.

    Use case ends.

Use case: UC-06 Clear

Preconditions

• User may optionally specify tags to filter which contacts are cleared.

MSS

1. Teacher enters the clear command.
2. EduConnect clears all contacts in the address book.

3. EduConnect displays a success message.

   Use case ends.

Extensions

• 1a. Teacher specifies a tag to clear.

  • 1a1. EduConnect clears all contacts with that tag value in the address book.

    Use case ends.

• 1b. Teacher specifies an invalid tag.

  • 1b1. EduConnect displays an error message.

    Use case ends.

• 1c. Teacher specifies a tag with no matching contacts.

  • 1c1. EduConnect displays an error, e.g. “No possible entries in EduConnect to clear!”.

    Use case ends.

Use case: UC-07 Find

MSS

1. Teacher enters the find command with some specific criteria.

2. EduConnect displays a list of all persons that fit that criteria in the address book.

   Use case ends.

Extensions

• 1a. Teacher doesn’t specify any criteria.

  • 1b1. EduConnect displays an error message.

    Use case ends.

• 1b. Teacher uses invalid tags to filter.

  • 1b1. EduConnect displays an error message.

    Use case ends.

Use case: UC-08 Sort

MSS

1. Teacher enters the sort command with some criteria.
2. EduConnect sorts the list of all persons by that criteria.

3. EduConnect displays the list of all persons in the address book.

   Use case ends.

Extensions

• 1a. Teacher doesn’t specify any criteria.

  • 1a1. EduConnect displays an error message.

    Use case ends.

• 1b. Teacher specifies invalid criteria.

  • 1b1. EduConnect displays an error message.

    Use case ends.

Use case: UC-09 Mark Attendance

MSS

1. Teacher enters the mark command.

2. EdUConnect marks all the students attendance, incrementing it by 1.

   Use case ends.

Use case: UC-10 Unmark Attendance

MSS

1. Teacher enters the unmark command with the index(es) of the student(s) to unmark.

2. EduConnect unmarks the specified student(s) attendance, decrementing it by 1.

   Use case ends.

Extensions

• 1a. Teacher doesn’t specify any indexes.

  • 1a1. EduConnect displays an error message.

    Use case ends.

• 1b. Teacher specifies an invalid index.

  • 1b1. EduConnect displays an error message.

    Use case ends.

• 1c. Teacher specifies an index of a Student with 0 days attendance.

  • 1c1. EduConnect displays an error message, e.g. “Only students who have attended at least one day can be unmarked”.

    Use case ends.

Use case: UC-11 Reset attendance

MSS

1. Teacher enters the resetAttendance command.

2. EduConnect resets the attendance of all students in the address book.

   Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. The system should handle errors gracefully, providing clear error messages for invalid inputs or operations.
5. The system should be platform-independent and capable of running on any operating system that supports Java, ensuring that users across different platforms can use the program.
6. The code should be well-documented, enabling developers to maintain and upgrade the system efficiently.
7. The system should be modular, allowing for easy extension in the future (e.g., adding new fields for contacts or new types of commands).

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS.
• Private contact detail: A contact detail that is not meant to be shared with others.
• Subject: The subject the student / teacher is taking.
• Class: The class the student / teacher is taking.
• Command Line Interface (CLI): Text-based user interface that allows the user to input.
• Next-of-Kin: The contact of the closest relative of the current contact.
• Database: An organized collection of structured information or data, typically stored electronically.
• GUI (Graphical User Interface): A visual user interface that allows users to interact with an application through graphical elements like buttons, icons, and menus, instead of typing commands.
• Encryption: The process of converting plain text data into a coded format to prevent unauthorized access.
• Version Control: A system that records changes to a file or set of files over time, allowing developers to track and manage revisions.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch
   1. Download the jar file and copy into an empty folder.
   2. Open the “Command Prompt” (for Windows) or “Terminal” (for Mac/Linux).
   3. Type cd followed by the folder location where you saved the EduConnect file.

   4. Type and enter the command java -jar educonnect.jar.

      Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences
   1. Resize the window to an optimum size. Move the window to a different location. Close the window.
   2. Re-launch the app by following the instructions from 1ii onwards.
      Expected: The most recent window size and location is retained.

Adding a Student

1. Adding a Student
   1. Prerequisites: There is no existing person (student or teacher) in EduConnect with the same contact or email as the student we’re adding.
   2. Test case: student /name John Doe /gender male /contact 98765432 /email johnd@example.com /address 311, Clementi Ave 2, #02-25 /subject Physics /classes 7A,7B /attendance 0 /nok Bob Doe /emergency 87654321
      Expected: A student is added to EduConnect with the specified details. A new blue colored card is added to the GUI with the student’s details.
   3. Test case: student (missing required fields like name, contact, etc. )
      Expected: No student is added. An error is thrown indicating the command given has an invalid format.
   4. Other incorrect student commands to try:
      • student /name John Doe (missing other required fields)
      • student /name John Doe /contact 12345 ... (invalid phone format)
        Expected: Similar to previous case. No student is added. If all required fields are provided but an invalid format was used, specific error details for that will be given. For example, “Phone numbers should only contain numbers, and it should be exactly 8 digits long”.

Adding a Teacher

1. Adding a Teacher
   1. Prerequisites: There is no existing person (student or teacher) in EduConnect with the same contact or email as the teacher we’re adding.
   2. Test case: teacher /name John Doe /gender male /contact 98765432 /email johnd@example.com /address 311, Clementi Ave 2, #02-25 /subject Physics /classes 7A,7B
      Expected: A teacher is added to EduConnect with the specified details. A new green colored card is added to the GUI with the teacher’s details.
   3. Test case: teacher (missing required fields like name, contact, etc. )
      Expected: No teacher is added. An error is thrown indicating the command given has an invalid format.
   4. Other incorrect teacher commands to try:
      • teacher /name John Doe (missing other required fields)
      • teacher /name John Doe /contact 12345 ... (invalid phone format)
        Expected: Similar to previous case. No teacher is added. If all required fields are provided but an invalid format was used, specific error details for that will be given. For example, “Phone numbers should only contain numbers, and it should be exactly 8 digits long”.

Deleting a person

1. Deleting a person while all persons are being shown
   1. Prerequisites: List all persons using the list command. Multiple persons in the list.
   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message.
   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message.
   4. Other incorrect delete commands to try: delete, delete x (where x is larger than the list size, negative or a non-integer)
      Expected: Similar to previous.
   5. Test case: delete 1 2
      Expected: First and second contact is deleted from the list. Details of the deleted contacts are shown in the status message.
2. Deleting a person while only some persons are shown
   1. Prerequisites: Possibly only some persons are shown, using the find command. Not all persons may be shown.
   2. Test case: delete 1
      Expected: First contact in the filtered list is deleted from EduConnect. Details of the deleted contact shown in the status message.
   3. Similar test cases as before, but now relative to the current filtered shown list.

Editing a person

1. Editing a person while all persons are shown
   1. Prerequisites: List all persons using the list command. Multiple persons in the list.
   2. Test case: edit 1 /name Bob
      Expected: First contact’s name is edited to “Bob”. Details of the edited contact shown in the status message.
   3. Test case: edit 3 /name Bob /contact 12345678
      Expected: Third contact’s name is edited to “Bob” and contact number is edited to 12345678. Details of the edited contact shown in the status message.
   4. Test case: edit 0 /name Bob
      Expected: No person is edited. Error details shown in the status message.
   5. Other incorrect edit commands to try: edit, edit x (where x is larger than the list size, negative or non-integer), edit 1 /contact 111 (invalid phone format)
      Expected: Similar to previous case. No person is edited. If an invalid format was used, specific error details for that will be given. For example, “Phone numbers should only contain numbers, and it should be exactly 8 digits long”.

Clearing EduConnect

1. Clearing data from EduConnect with at least one person
   1. Prerequisites: There exists at least one person in EduConnect.
   2. Test case: clear
      Expected: All contacts are cleared from EduConnect.
   3. Test case: clear /name John
      Expected: All contacts that have “John” in their name will be cleared from EduConnect. If there are no existing contacts with “John” in their name, an error will be thrown.
   4. Test case: clear /name John Doe
      Expected: All contacts that have either “John” or “Doe” in their name will be cleared from EduConnect. As before, if there are no existing contacts that fit that criteria, an error will be thrown.
   5. Test case: clear /name John /subject Physics
      Expected: All contacts that either have “John” in their name or “Physics” in their subjects will be cleared from EduConnect. As before, if there are no existing contacts that fit that criteria, an error will be thrown.
   6. Test case: clear /x (where x is an invalid TAG)
      Expected: No contacts are deleted. Error details shown in the status message.

Listing

1. Listing all persons in EduConnect
   1. Test case: list
      Expected: All persons in EduConnect are listed out in the GUI.
   2. Test case: list x (where x is some other random input)
      Expected: Same as case before. Random input x is ignored.

Sorting

1. Sorting EduConnect while all persons are shown
   1. Prerequisites: List all persons using the list command. Multiple persons in the list.
   2. Test case: sort name
      Expected: All the persons in EduConnect are sorted by their name in alphabetical order.
   3. Test case: sort subject
      Expected: All the persons in EduConnect are sorted by their first subject in their list in alphabetical order.
   4. Test case: sort class
      Expected: All the persons in EduConnect are sorted by their first class in their list in alphabetical order.
   5. Test case: sort attendance
      Expected: All the persons in EduConnect are sorted by their attendance in descending order. Teachers (who don’t have attendance) are pushed to the end.
   6. Test case: sort x (where x is some random input that isn’t any of the earlier test cases)
      Expected: EduConnect is not sorted. Error details shown in the status message.
2. Sorting EduConnect while only some persons are shown
   1. Prerequisites: Possibly only some persons are shown, using the find command. Not all persons may be shown.
   2. Similar test cases as before but only the filtered persons are sorted and shown in the GUI.

Finding people in EduConnect

1. Finding people in EduConnect while all persons are shown
   1. Prerequisites: List all persons using the list command. Multiple persons in the list.
   2. Test case: find /name John
      Expected: All persons who have “John” in their name are shown in the GUI and the rest are hidden.
   3. Test case: find /name John Doe
      Expected: All persons who have either John or Doe in their name are shown in the GUI and the rest are hidden.
   4. Test case: find /name John /subject Physics
      Expected: All persons who have either John in their name or Physics among their subjects are shown in the GUI and the rest are hidden.
   5. Test case: find
      Expected: EduConnect remains the same. Error details shown in the status message.
   6. Other incorrect find commands to try:
      • find John (where the command is missing a TAG to find with)
        Expected: Similar to previous case. EduConnect remains the same. Error details shown in the status message.
2. Finding people in EduConnect while only some persons are shown
   1. Prerequisites: Possibly only some persons are shown, using the find command. Not all persons may be shown.
   2. Similar test cases as before. find does not take into account the current state of EduConnect, i.e. if a person isn’t currently displayed on the GUI but fits the next find command’s criteria, it will still be displayed.

Undoing

1. Undoing a previous command
   1. Prerequisites: At least one undo-able command has been executed in EduConnect.
   2. Test case: undo
      Expected: The previous command is undone and EduConnect returns to its previous state.
   3. Test case: undo x (where x is some random input)
      Expected: Similar to previous case. The random input x is ignored.

Redoing

1. Redoing a previously undone command
   1. Prerequisites: At least one command has been undone in EduConnect.
   2. Test case: redo
      Expected: The previously undone command is redone and EduConnect returns to its previously original state.
   3. Test case: redo x (where x is some random input)
      Expected: Similar to previous case. The random input x is ignored.

Marking Attendance

1. Marking attendance in EduConnect
   1. Prerequisites: None.
   2. Test case: mark
      Expected: All students in EduConnect have their attendance incremented by 1.
   3. Test case: mark x (where x is some random input)
      Expected: Similar to previous case. The random input x is ignored.

Unmarking Attendance

1. Unmarking attendance while all persons are shown
   1. Prerequisites: List all persons using the list command. Multiple persons in the list.
   2. Test case: unmark 1
      Expected: The student at index 1 has their attendance decremented by 1.
   3. Test case: unmark 0
      Expected: No students’ attendance are affected. Error details shown in the status message.
   4. Other incorrect unmark commands to try:
      • unmark, unmark x (where x is larger than the list size, negative or a non-integer)
        Expected: Similar to previous case. Error details shown in the status message.
   5. Test case: unmark 1 (where index 1 is a teacher)
      Expected: Similar to previous case. Error details shown in the status message.
2. Unmarking attendance while only some persons are shown
   1. Prerequisites: Possibly only some persons are shown, using the find command. Not all persons may be shown.
   2. Similar test cases as before, but now relative to the current filtered shown list.

Resetting Attendance

1. Resetting attendance while all persons are shown
   1. Prerequisites: List all persons using the list command. Multiple persons in the list.
   2. Test case: resetAttendance
      Expected: All students’ attendance are reset to 0.
   3. Test case: resetAttendance x (where x is some random input)
      Expected: Similar to previous case. The random input x is ignored.
2. Resetting attendance while only some persons are shown
   1. Prerequisites: Possibly only some persons are shown, using the find command. Not all persons may be shown.
   2. Similar test cases as before. resetAttendance does not take into account the current state of EduConnect, i.e. if a student isn’t currently displayed on the GUI and resetAttendance is executed, their attendance is also reset to 0.

Help

1. Executing the help command
   1. Prerequisites: None.
   2. Test case: help
      Expected: A separate window is opened with a URL to the user guide. Users can click “Copy URL” to copy the URL to their clipboard.
   3. Test case: help x (where x is some random input)
      Expected: Similar to previous case. The random input x is ignored.

Exiting EduConnect

1. Executing the exit command
   1. Prerequisites: None.
   2. Test case: exit
      Expected: The current EduConnect window is closed.
   3. Test case: exit x (where x is some random input)
      Expected: Similar to previous case. The random input x is ignored.
